SMD1812系列自恢复保险丝在存储器类适用产品
 免费样品申请
贴片型、无铅、卷盘式包装,适合自动化贴装,应用于高密度线路板,工作电流:0 1-3 0A 工作电压:6-60V 工作温度:-40~85℃。
   WHPTC(SMD表面贴装型)自复位过流保护器 SMD1812系列(SMD1812 Series)

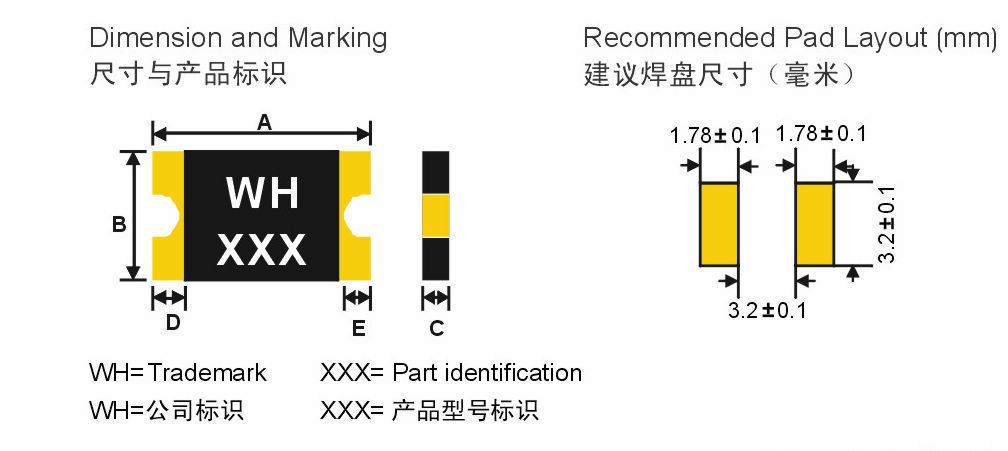

SMD1812自复位过流保护器产品的尺寸和标识
产品电气特性参数 Performance specification (25℃)
Model
型号
Vmax Imax Ih It Pd Time to trip Resistance
V A A A W Current(A) Time(s) Rmin(Ω) R1max(Ω)
WH1812-075 16 40 0.75 1.50 1.0 8.0 0.20 0.100 0.500
WH1812-110 8 40 1.10 2.20 1.0 8.0 0.30 0.060 0.260

产品尺寸参数 Dimensions (mm)
Model
型号
A B C D E
Min Max Min Max Min Max Min Min
WH1812-075 4.37 4.73 3.07 3.41 0.40 1.00 0.30 0.25
WH1812-110 4.37 4.73 3.07 3.41 0.40 1.00 0.30 0.25

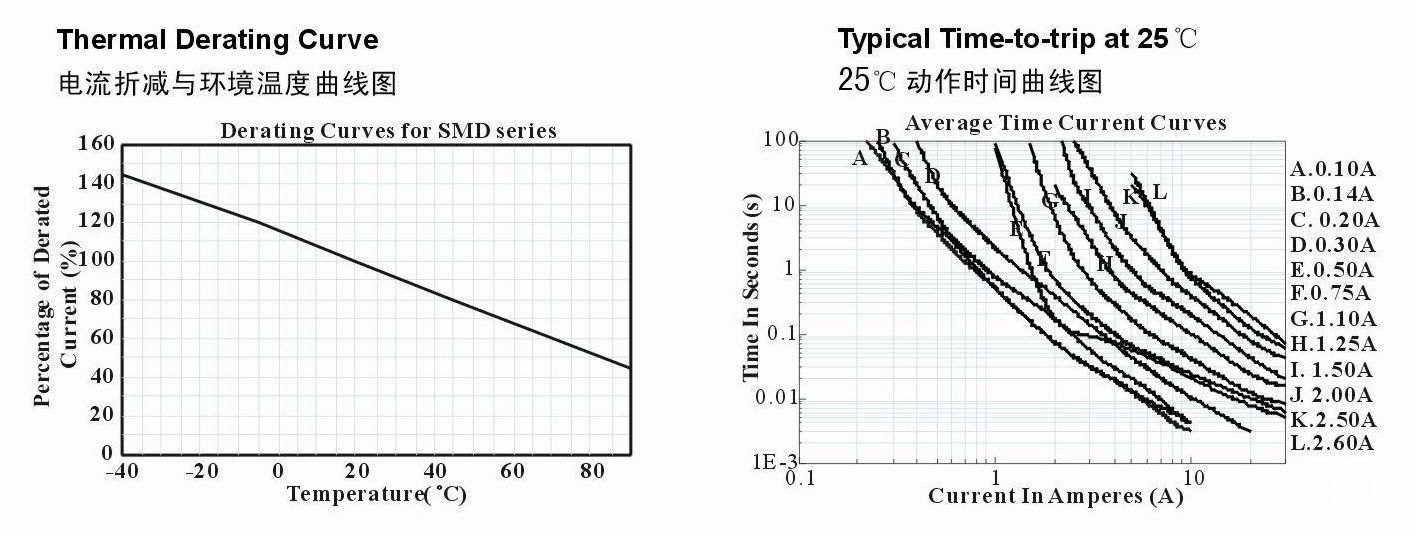

SMD1812系列产品电流折减与环境温度和25°C动作时间曲线图
备注:以上信息仅供参考,产品选型要根据客户的自身需求进行实际选型
  • 产品中心
  • 自恢复保险丝领域
产品大图
SMD1812系列自恢复保险丝在存储器类适用产品
产品简介
贴片型、无铅、卷盘式包装,适合自动化贴装,应用于高密度线路板,工作电流:0 1-3 0A 工作电压:6-60V 工作温度:-40~85℃。
产品编号:WHPTC 所属类别:仪器仪表及医疗保健保险丝
浏览次数:订购热线:0755-29503750
标签 SMD1812 系列 恢复

   WHPTC(SMD表面贴装型)自复位过流保护器 SMD1812系列(SMD1812 Series)


SMD1812自复位过流保护器产品的尺寸和标识
产品电气特性参数 Performance specification (25℃)
Model
型号
Vmax Imax Ih It Pd Time to trip Resistance
V A A A W Current(A) Time(s) Rmin(Ω) R1max(Ω)
WH1812-075 16 40 0.75 1.50 1.0 8.0 0.20 0.100 0.500
WH1812-110 8 40 1.10 2.20 1.0 8.0 0.30 0.060 0.260

产品尺寸参数 Dimensions (mm)
Model
型号
A B C D E
Min Max Min Max Min Max Min Min
WH1812-075 4.37 4.73 3.07 3.41 0.40 1.00 0.30 0.25
WH1812-110 4.37 4.73 3.07 3.41 0.40 1.00 0.30 0.25
SMD1812系列产品电流折减与环境温度和25°C动作时间曲线图
备注:以上信息仅供参考,产品选型要根据客户的自身需求进行实际选型

万和”;自恢复保险丝(插件式)技术参数

WHPTC Technical Support

符号定义 Definition

符号Sign 说明 Definition
Ih

WHPTC在25℃环境温度下的最大 工作电流

Hold current-maximum current at which the device will not trip at 25℃
It WHPTC在25℃环境温度下启动保护的最小电流 Trip current-minimum current at which the device will always trip at 25℃
Vmax WHPTC的最大工作电压 Maximum voltage at which the device will not trip
Vmaxi WHPTC在阻断状态下所承受的最大电压 Maximum voltage device can withstand without damage at it rated current
Imax WHPTC能承受的最大电流 Maximum fault current device can withstand without damage at rated voltage
Rmin WHPTC工作前的初始最小阻值 Minimum device resistance at 25℃ prior to tripping
Rmax WHPTC工作前的初始最大阻值 Maximum device resistance at 25℃ prior to tripping
Figure 图示 The Figure of WHPTC
Lead 导线尺寸 Lead diameter

环境温度及电流值折减比率表

Discount rate of ambient temperature and current

WH Series -20℃ 0℃ 25℃ 30℃ 40℃ 50℃ 60℃ 70℃ 85℃
WH6 130% 115% 100% 91% 83% 77% 68% 61% 52%
WH16 132% 120% 100% 96% 88% 80% 71% 61% 47%
WH30 130% 115% 100% 91% 83% 77% 68% 61% 52%
WH60 136% 119% 100% 90% 81% 72% 63% 54% 40%
WH130 136% 119% 100% 92% 81% 72% 63% 54% 40%
WH250 132% 117% 100% 91% 85% 77% 68% 61% 48%
WH600 138% 119% 100% 92% 83% 73% 64% 55% 42%
