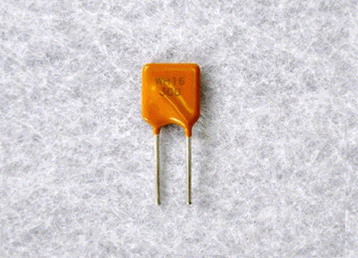

WH16 系列 WH16 Product Data
WH16 电气特性与产品尺寸 WH16 product characteristics and dimensions (25℃)
| Model 型号 | Ih | It | Vmaxi | Imax | Rmin | Rmax | Product Dimensions (mm) 最大产品尺寸 |
|||||
| A | A | V | A | Ω | Ω | Style | A | B | C | D | Lead | |
WH16-100  |
1.0 | 1.7 | 16 | 40 | 0.100 | 0.300 | F2 | 7.0 | 11.4 | 5.1 | 3.0 | 0.6 |

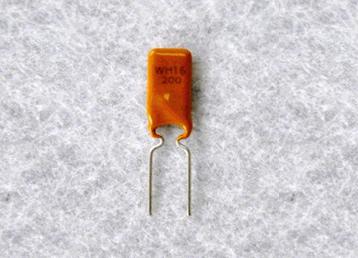

| WH16-200 |
2.0 | 3.4 | 16 | 40 | 0.050 | 0.120 | F3 | 6.0 | 14.8 | 5.1 | 3.0 | 0.6 |
| WH16-300 |
3.0 | 5.1 | 16 | 100 | 0.034 | 0.095 | F1 | 8.8 | 11.8 | 5.1 | 3.0 | 0.8 |
| WH16-400 |
4.0 | 6.8 | 16 | 100 | 0.018 | 0.043 | F1 | 9.5 | 12.5 | 5.1 | 3.0 | 0.8 |
| WH16-500 |
5.0 | 8.5 | 16 | 100 | 0.014 | 0.030 | F1 | 9.8 | 14.6 | 5.1 | 3.0 | 0.8 |
| WH16-600 |
6.0 | 10.2 | 16 | 100 | 0.009 | 0.025 | F1 | 11.6 | 14.6 | 5.1 | 3.0 | 0.8 |
| WH16-700 |
7.0 | 11.9 | 16 | 100 | 0.006 | 0.022 | F1 | 13.0 | 17.0 | 5.1 | 3.0 | 0.8 |
| WH16-800 |
8.0 | 13.6 | 16 | 100 | 0.006 | 0.016 | F1 | 14.5 | 20.0 | 5.1 | 3.0 | 0.8 |
| WH16-900 |
9.0 | 15.3 | 16 | 100 | 0.005 | 0.012 | F1 | 14.5 | 20.0 | 5.1 | 3.0 | 0.8 |
| WH16-1000 |
10.0 | 17.0 | 16 | 100 | 0.0045 | 0.011 | F1 | 17.5 | 24.5 | 10.2 | 3.0 | 0.8 |
| WH16-1100 |
11.0 | 18.7 | 16 | 100 | 0.004 | 0.010 | F1 | 17.5 | 24.5 | 10.2 | 3.0 | 0.8 |

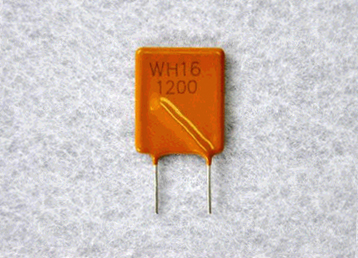

| WH16-1200 |
12.0 | 20.4 | 16 | 100 | 0.0035 | 0.009 | F1 | 17.5 | 24.5 | 10.2 | 3.0 | 0.8 |
| WH16-1400 |
14.0 | 23.8 | 16 | 100 | 0.002 | 0.008 | F1 | 20.5 | 28.0 | 10.2 | 3.0 | 0.8 |
| WH16-1800 |
18.0 | 30.4 | 16 | 100 | 0.0023 | 0.0055 | F1 | 25.7 | 32.3 | 10.2 | 3.0 | 0.8 |
符号定义 Definition
| 符号Sign | 说明 | Definition |
| Ih | WHPTC在25℃环境温度下的最大 工作电流 | Hold current-maximum current at which the device will not trip at 25℃ |
| It | WHPTC在25℃环境温度下启动保护的最小电流 | Trip current-minimum current at which the device will always trip at 25℃ |
| Vmax | WHPTC的最大工作电压 | Maximum voltage at which the device will not trip |
| Vmaxi | WHPTC在阻断状态下所承受的最大电压 | Maximum voltage device can withstand without damage at it rated current |
| Imax | WHPTC能承受的最大电流 | Maximum fault current device can withstand without damage at rated voltage |
| Rmin | WHPTC工作前的初始最小阻值 | Minimum device resistance at 25℃ prior to tripping |
| Rmax | WHPTC工作前的初始最大阻值 | Maximum device resistance at 25℃ prior to tripping |
| Figure | 图示 | The Figure of WHPTC |
| Lead | 导线尺寸 | Lead diameter |
环境温度及电流值折减比率表
Discount rate of ambient temperature and current
| WH Series | -20℃ | 0℃ | 25℃ | 30℃ | 40℃ | 50℃ | 60℃ | 70℃ | 85℃ |
| WH6 | 130% | 115% | 100% | 91% | 83% | 77% | 68% | 61% | 52% |
| WH16 | 132% | 120% | 100% | 96% | 88% | 80% | 71% | 61% | 47% |
| WH30 | 130% | 115% | 100% | 91% | 83% | 77% | 68% | 61% | 52% |
| WH60 | 136% | 119% | 100% | 90% | 81% | 72% | 63% | 54% | 40% |
| WH130 | 136% | 119% | 100% | 92% | 81% | 72% | 63% | 54% | 40% |
| WH250 | 132% | 117% | 100% | 91% | 85% | 77% | 68% | 61% | 48% |
| WH600 | 138% | 119% | 100% | 92% | 83% | 73% | 64% | 55% | 42% |
WH16系列25℃时典型动作时间曲线 WH16 Typical Time to Trip at 25℃
|
A:WH16-300
B:WH16-400
C:WH16-500
D:WH16-600
E:WH16-700
F:WH16-800
G:WH16-900
H:WH16-1000
I:WH16-1100
J:WH16-1200
K:WH16-1400
|
 |
以上产品资料内容如有变更将不另行通知，敬请谅解。不详之处，请来电咨询，谢谢！
The product information will be updated without notice. If there is any problem, please call us, thanks!
