WH16系列自恢复保险丝充电器适用产品

免费样品申请

WH16系列自恢复保险丝（WHPTC）产品在充电器的适用产品WH16-1100,WH16-1200,WH16-1800

Model 型号	Ih	It	Vmaxi	Imax	Rmin	Rmax	Product Dimensions (mm) 最大产品尺寸
Model 型号	A	A	V	A	Ω	Ω	Style	A	B	C	D	Lead
WH16-1100	11.0	18.7	16	100	0.004	0.010	F1	17.5	24.5	10.2	3.1	0.8
WH16-1200	12.0	20.4	16	100	0.0035	0.009	F1	17.5	24.5	10.2	3.1	0.8
WH16-1800	18.0	30.4	16	100	0.0023	0.0055	F1	25.7	32.3	10.2	3.1	0.8

WH16系列25℃时典型动作时间曲线 WH16 Typical Time to Trip at 25℃

A:WH16-300
B:WH16-400
C:WH16-500
D:WH16-600
E:WH16-700
F:WH16-800
G:WH16-900
H:WH16-1000
I:WH16-1100
J:WH16-1200
K:WH16-1400

备注：1.I,K是充电器适用产品在25°C时典型动作时间曲线
2.以上信息仅供参考，产品选型要根据客户的自身需求进行实际选型

WH16系列自恢复保险丝充电器适用产品

产品简介

WH16系列自恢复保险丝（WHPTC）产品在充电器的适用产品WH16-1100,WH16-1200,WH16-1800

产品编号：	所属类别：电源相关自恢复保险丝
浏览次数：次	订购热线：0755-29503750

标签

Model 型号	Ih	It	Vmaxi	Imax	Rmin	Rmax	Product Dimensions (mm) 最大产品尺寸
Model 型号	A	A	V	A	Ω	Ω	Style	A	B	C	D	Lead
WH16-1100	11.0	18.7	16	100	0.004	0.010	F1	17.5	24.5	10.2	3.1	0.8
WH16-1200	12.0	20.4	16	100	0.0035	0.009	F1	17.5	24.5	10.2	3.1	0.8
WH16-1800	18.0	30.4	16	100	0.0023	0.0055	F1	25.7	32.3	10.2	3.1	0.8

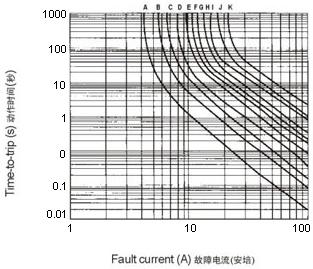

WH16系列25℃时典型动作时间曲线 WH16 Typical Time to Trip at 25℃

A:WH16-300
B:WH16-400
C:WH16-500
D:WH16-600
E:WH16-700
F:WH16-800
G:WH16-900
H:WH16-1000
I:WH16-1100
J:WH16-1200
K:WH16-1400

备注：1.I,K是充电器适用产品在25°C时典型动作时间曲线
2.以上信息仅供参考，产品选型要根据客户的自身需求进行实际选型

符号Sign	说明	Definition
Ih	WHPTC在25℃环境温度下的最大工作电流	Hold current-maximum current at which the device will not trip at 25℃
It	WHPTC在25℃环境温度下启动保护的最小电流	Trip current-minimum current at which the device will always trip at 25℃
Vmax	WHPTC的最大工作电压	Maximum voltage at which the device will not trip
Vmaxi	WHPTC在阻断状态下所承受的最大电压	Maximum voltage device can withstand without damage at it rated current
Imax	WHPTC能承受的最大电流	Maximum fault current device can withstand without damage at rated voltage
Rmin	WHPTC工作前的初始最小阻值	Minimum device resistance at 25℃ prior to tripping
Rmax	WHPTC工作前的初始最大阻值	Maximum device resistance at 25℃ prior to tripping

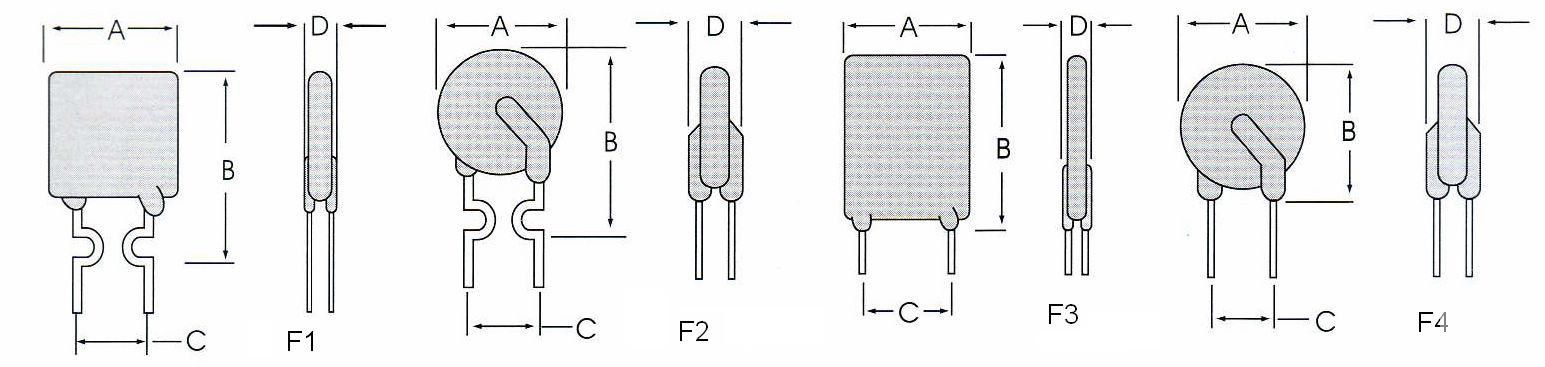

Figure	图示	The Figure of WHPTC
Lead	导线尺寸	Lead diameter
